OZONOSAN Water Ozonization Unit

The optional unit for water treatment with ozone.

The OZONOSAN water ozonisation unit can be used as an add-on to the ozone generators and enables simple and safe production of ozone water via the connection to the extraction nozzle.
In this process, 1 litre of aqua bidest is bubbled with the ozone-oxygen mixture at a water column of approx. 40cm.

The achievable ozone concentrations in the water depend on the duration of the treatment, the concentration of the ozone-oxygen mixture of the ozone generator, the water quality and the water temperature.
With an ozonization period of 5 to 15 minutes and a set concentration of 60 to 100 µg/ml, an ozone concentration in the water (aqua bidest, 22°C) of approx. 17 µg/ml is achieved. The ozone water can then be dispensed via the tap.
Ozonated water can be handled completely safely. Overdosing is also not possible, as the amount of ozone applied is limited by the solubility of the ozone in the water.
Excess ozone is decomposed into oxygen by the powerful catalyst.

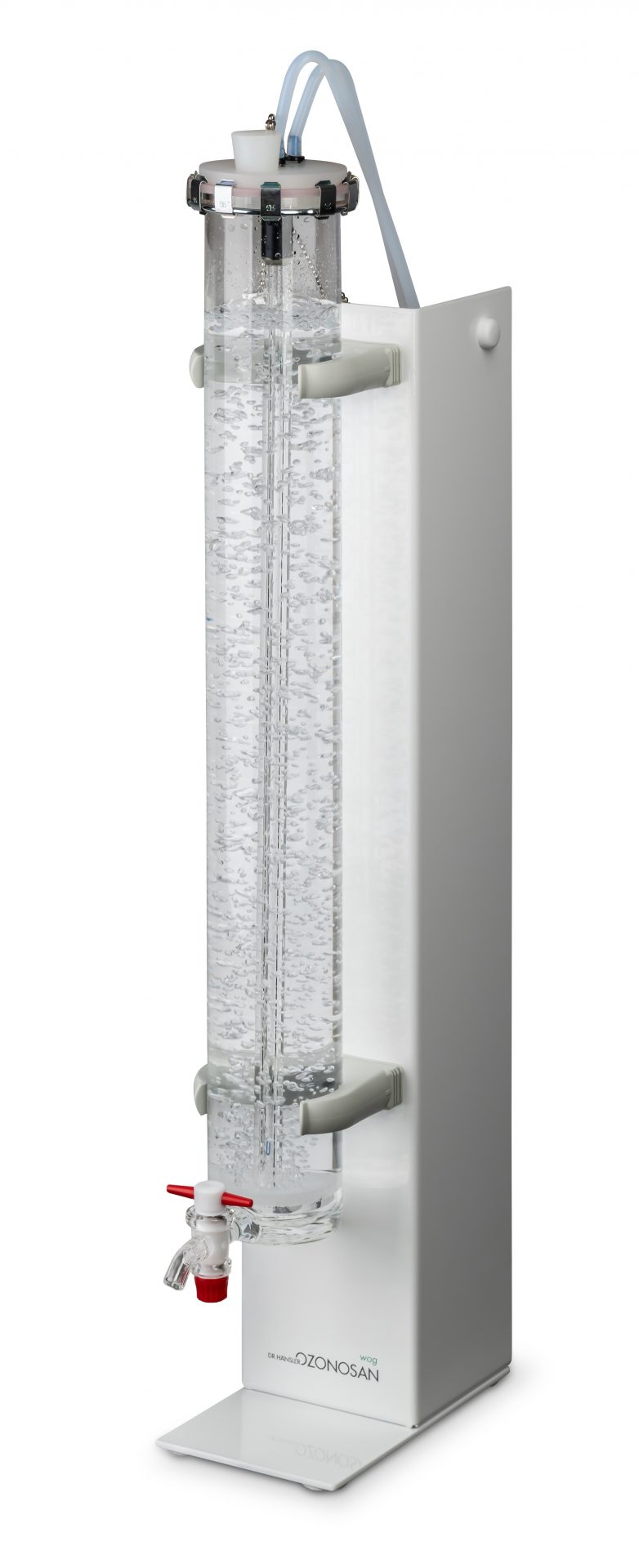

Ozongenerator photonik mit Wasserozonisierungsgerät

Product Highlights

  • Compatible to OZOMED and OZONOSAN ozone generators.
  • Easy handling.
  • Water ozonization with optimum ozone dose and level.
  • Highly efficient catalyzer system, auto-regenerative as essential prerequisite for efficient, local production of ozonized water

Application areas

The medical use of ozonized water has a long tradition. The ozone water produced can be used in a variety of ways. One example is the mouth rinse for disinfecting the oral cavity.

Technical specification OZONOSAN Water Ozonization Unit

OZONOSAN water ozonization device
Device setupStand-alone unit
Mode of operationCompatible to all OZONOSAN and OZOMED ozone generators
Ozone concentration18 to 20 [µg/ml]
Ozone withdrawalSampling tap
CatalyzerPowerful, vapour-resistant, exchanged without the need for tools
Water treatment with ozone1 l aqua bidest at a water column of approximately 40 cm
Dimensions [WxHxD]9.8 x 67 x 25 cm
Weight3 kg without water
Electrical data230 V AC; 50 Hz; Protection class II
Warranty2 years
technical data OZONOSAN water ozonization device
